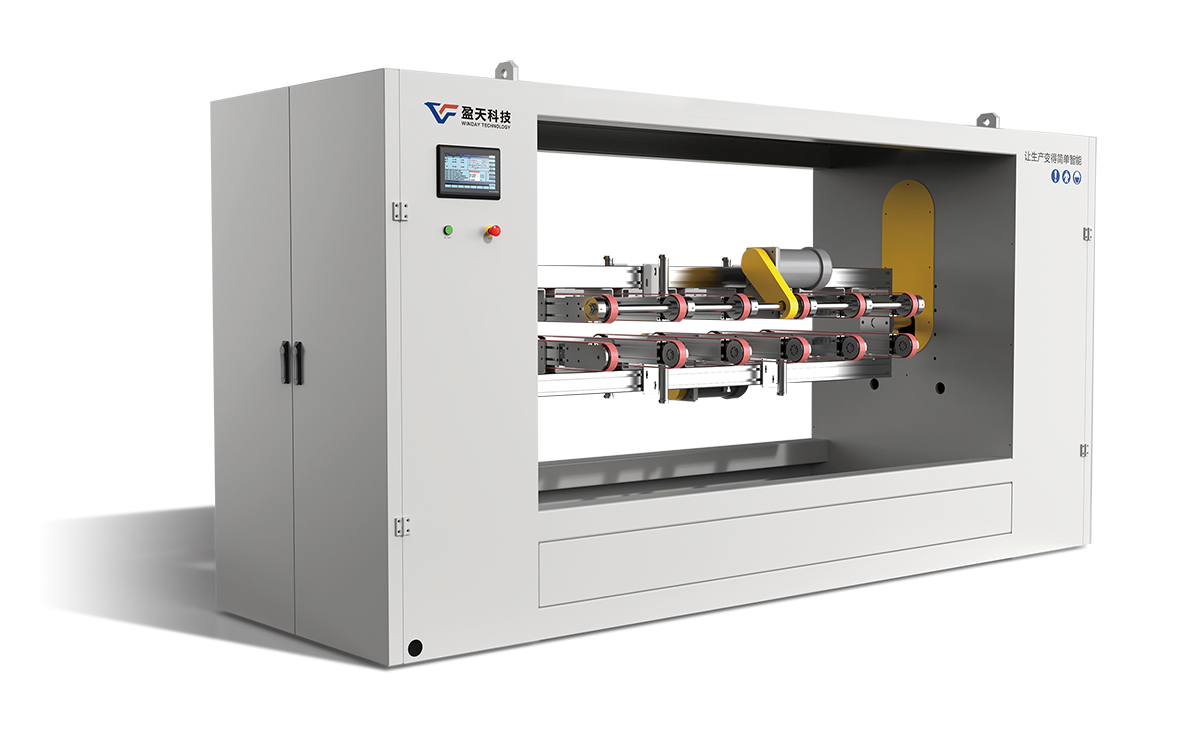

Current location：Home>Products>Intelligent Flap Series
Characteristic：
1. Touch screen control is adopted for easy and convenient operation.
2. Indexing design, fast continuous turnover speed.
3. Oxford anti-collision, to prevent the notch from being damaged.
4. lt is equipped with automatic brush cleaning function and electrostatic treatment.
Applicable Fields：
Turnover of plate, suitable for dust removal of furniture plate and floor plate.
Technical parameters：
| Model | VOH2L3106 | VOH34106 | VOH30106 |
| Processing length(mm) | 600-1550 | 600-1850 | 600-1850 |
| Processing width(mm) | 100-300 | 100-400 | 600-1250 |
| Processing thickness(mm) | 3-20 | 3-20 | 3-20 |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power(KW) | 1.5 | 1.5 | 1.5 |
| Efficiency(m/min) | 10-80 | 10-80 | 10-80 |
| L * W * H(mm) | 2580-450-1150 | 2880-450-1150 | 3430-1100-1700 |
| Weight(KG) | 530 | 550 | 1380 |
